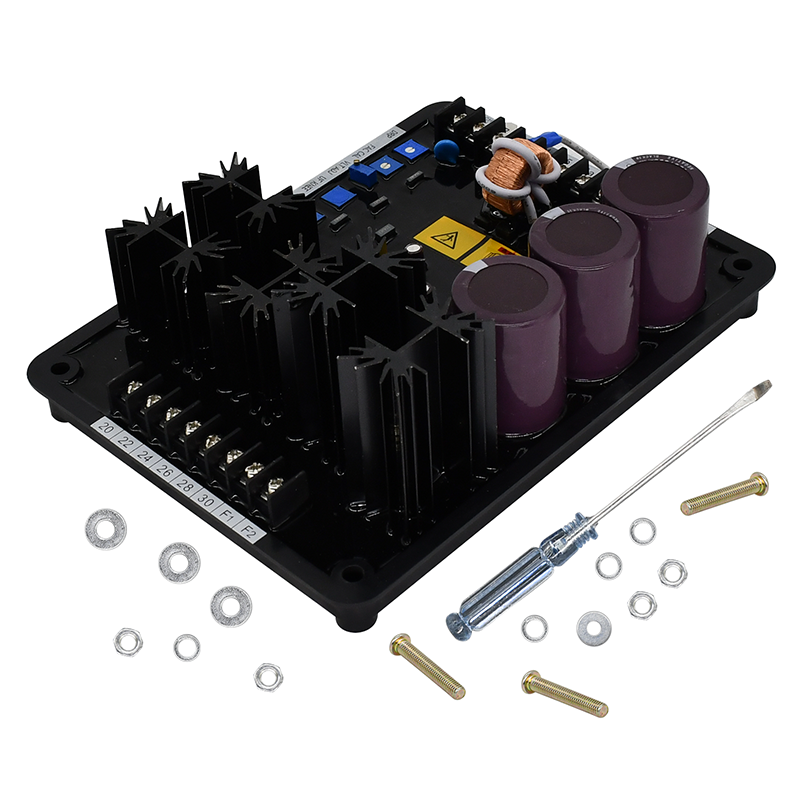

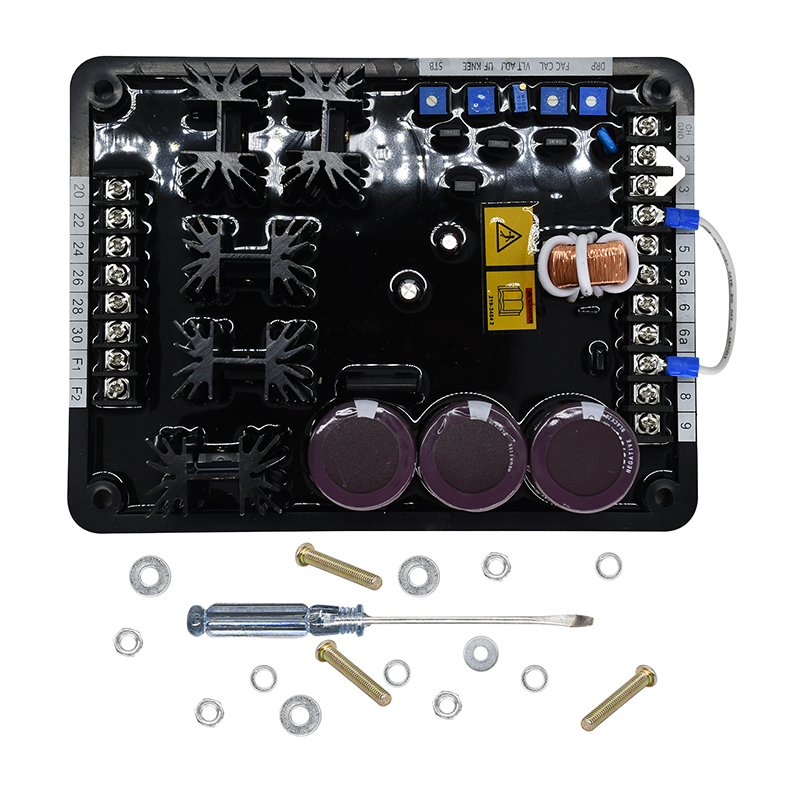

Automatic Voltage Regulator K65-12B For Caterpillar
Automatic Voltage Regulator K65-12B For Caterpillar
Buyer Protection
- Full Refund If you don't receive your order
- Full or Partial Refund , If the item is not as described Learn More >
Part Number: K65-12B K125-10B VR6
Item Weight: 3.24 pounds
Package Included: Automatic Voltage Regulator X 1
It Is a Replacement Part, Not Original Part. But It Can Work Good For You
Application:
For Caterpillar Generators
Specification:
Power: Shunt Excited
Input: 180-280 Vac, 50/60 Hz, 1 or 3 phase
PMG Excited 63-105 Vac 100/240 Hz 3 phase
Sensing input: 180-280 Vac, 50/60 Hz 1 OR 3 phase
CT input: 1 or 5Aac 50/60Hz
Output power (with a 240Vac Input):
12 Adc 65 Vdc maximumcontinuous.
25 Adc 125 Vdc forcing for 10seconds.
AC input power:
100 to 280 Vac, single-phase 50
to 400 Hz, or 63 to 105 Vac; three phase,
50 to 400 Hz, 1092 VA
maximum continuous burden
EMI suppression:
Internal filter
Voltage Build-Up:
Internal provisions for automatic
voltage build-up from generator
residual voltages as low as six Vac.
