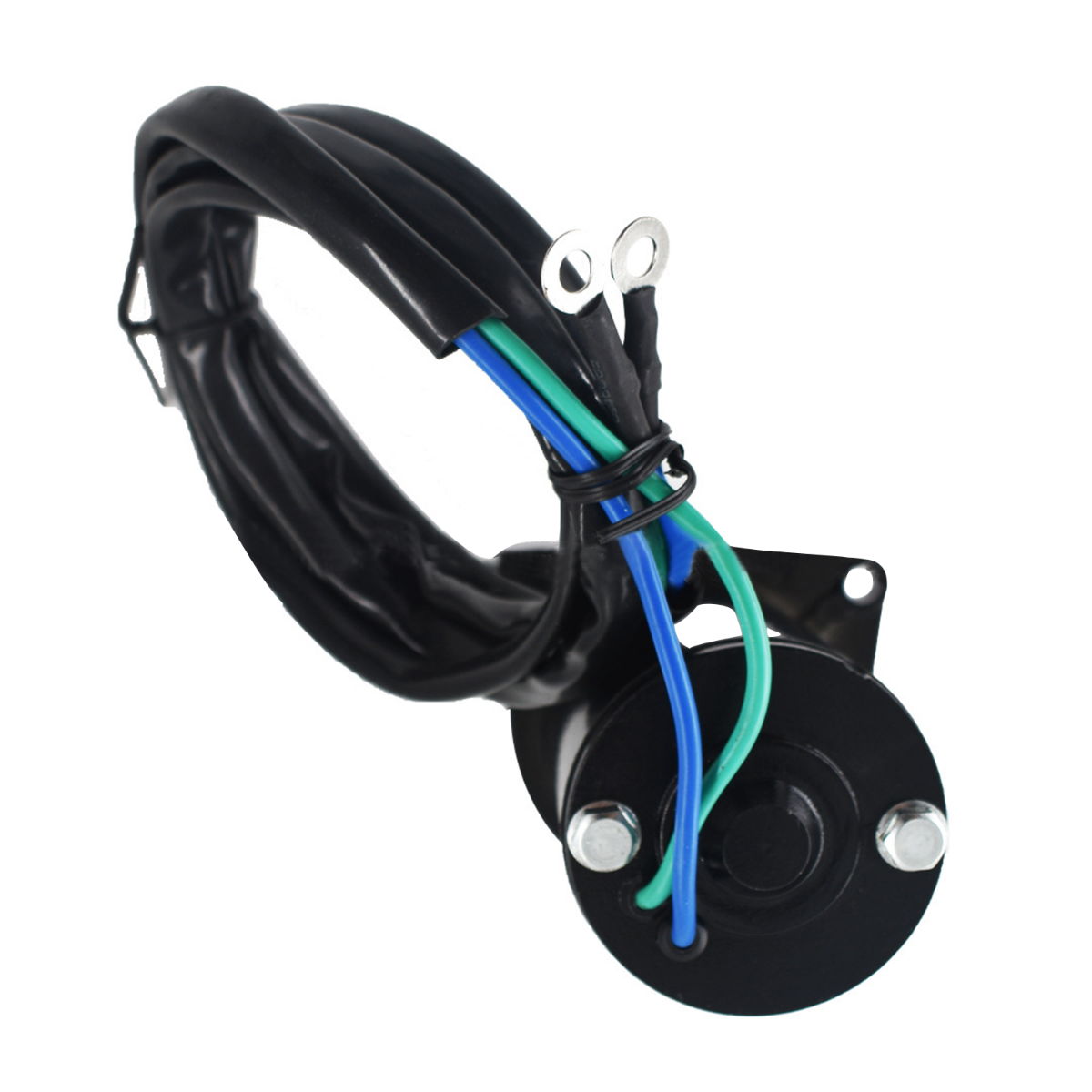

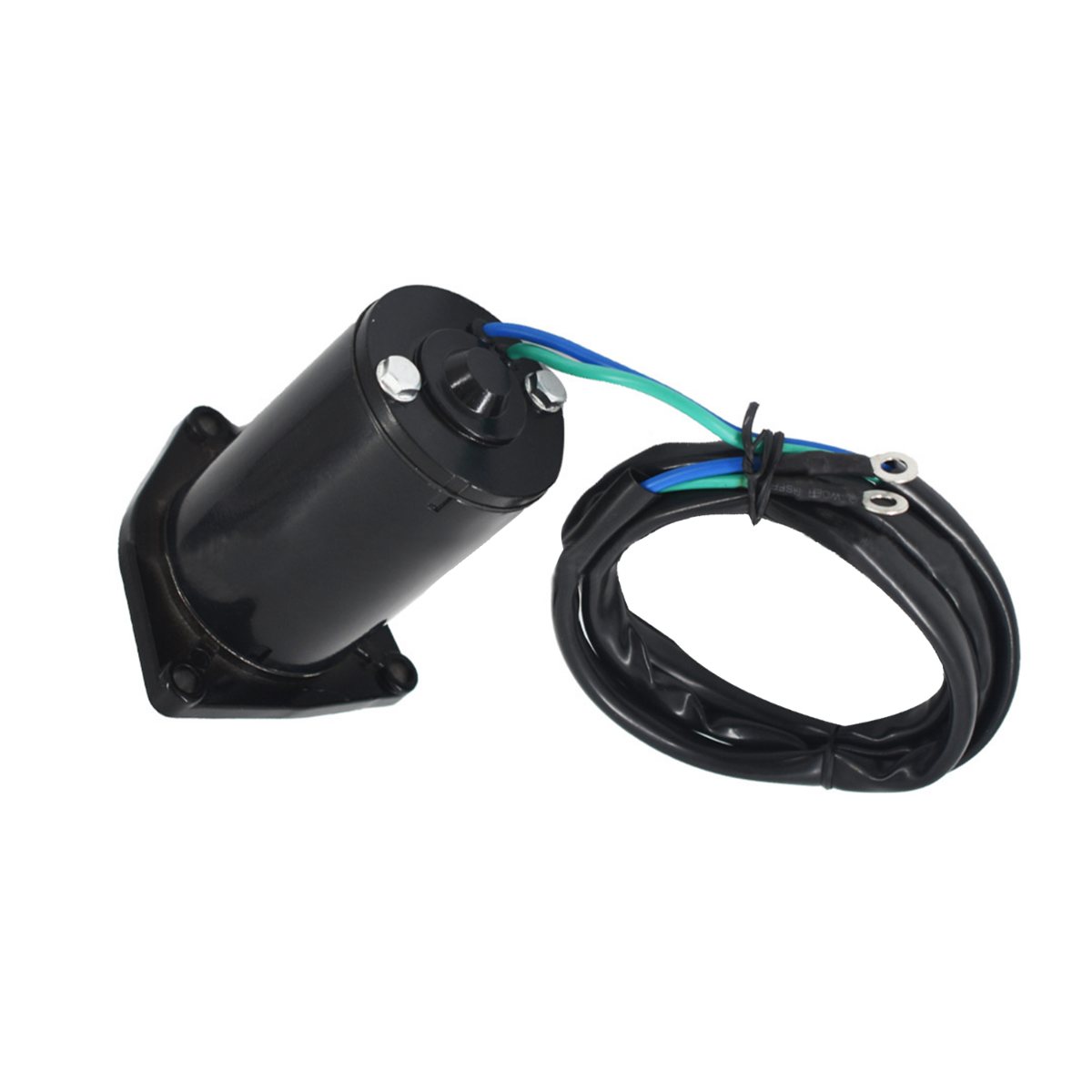

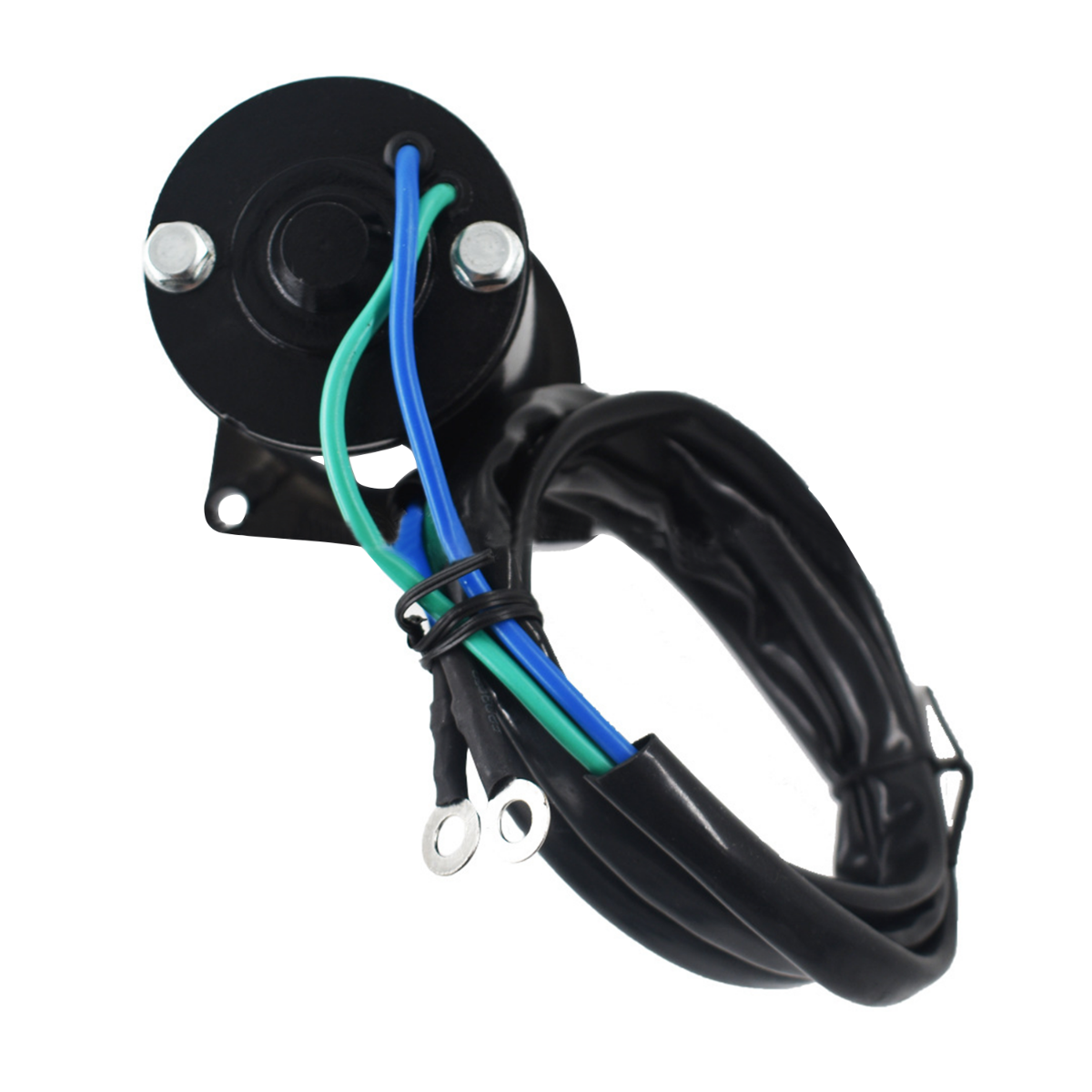

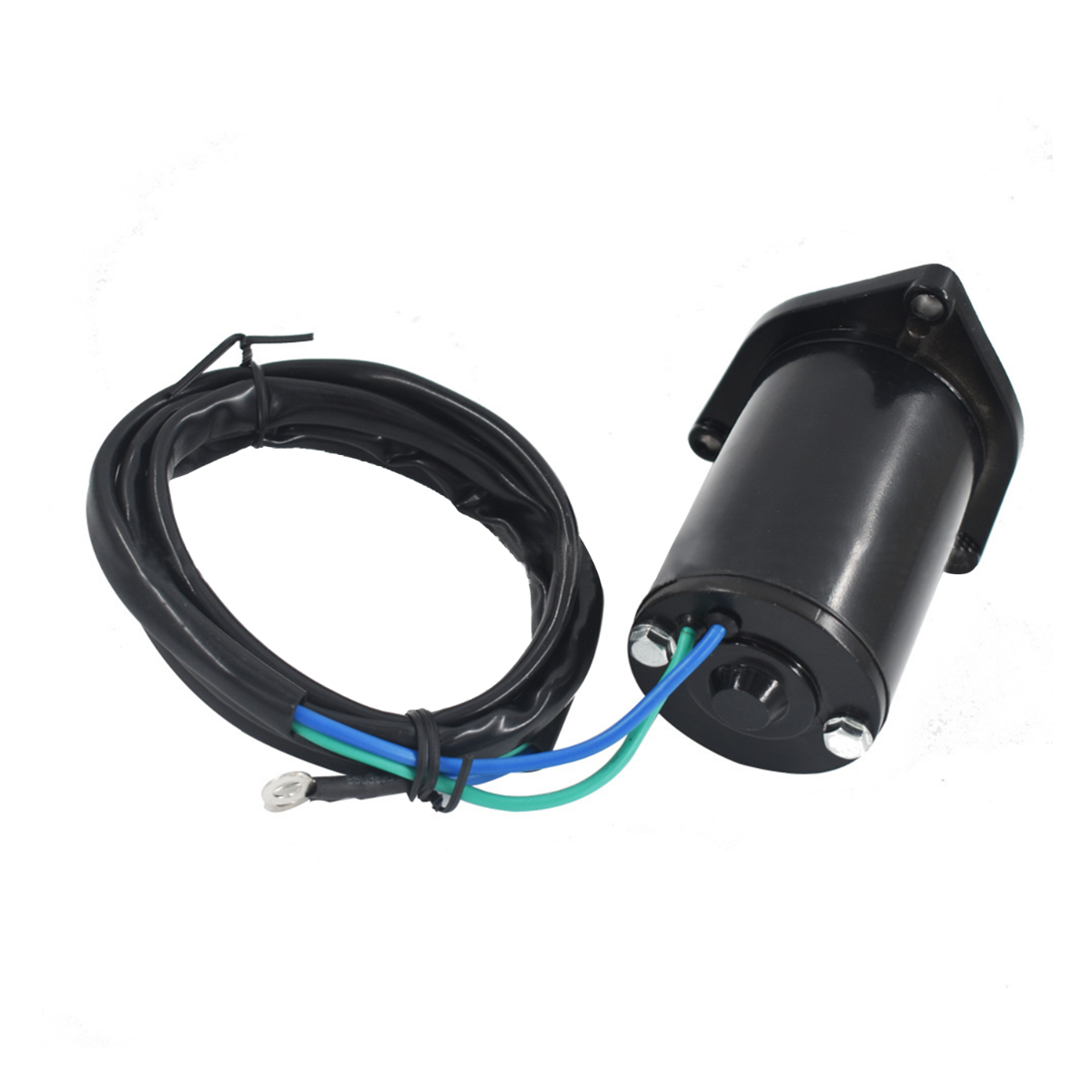

Disen Parts 12V Power Tilt Trim Motor 6H1-43880-02 for Mercury
Disen Parts 12V Power Tilt Trim Motor 6H1-43880-02 for Mercury
Buyer Protection
- Full Refund If you don't receive your order
- Full or Partial Refund , If the item is not as described Learn More >
Part Number:6C5-43880-00-00 6C5-43880-01-00 10860N 828708 878265A1 18-6773 430-22077
Reference Part Number:
For Yamaha 6H1-43880-02-00 6H1-43880-02 6H1438800200
For ARCO Marine 6260
For Sierra Marine 18-6781
For Remy Small Motor RT05015
For MES Motorcycle & Marine T1159M
For API Marine PT602NM
For Arrowhead TRM0025
For Barsanco 540-10830
For EMP Parts 4-6781
For EMS 49-6260
For J&N 430-22028
For Lester 10830
For Mallory 9-18407
For Minnpar 67-1773
For MP Parts 4-6781
For PIC 107-130
For WAI 10830N 82-68101
For Wilson Small Engine 74-35-10830
Fitment:
For Yamaha 40EJR 1994 40HP
For 40ELR 1994 40HP
For 40ESR 1994 40HP
For 40MJH 1994 40HP
For 40MLH 1994 40HP
For 40TLR 1994 40HP
For 50TLH 1992-1994 50HP
For 70TLR 1992-2010 70HP
For 90TJR 1992-2001 90HP
For 90TLR 1992-2010 90HP
For B90TLR 1998-1999 90HP
For C55ELR 1994-1995 55HP
For C55TLR 1994-1995 55HP
For C70TLR 1992-1995 70HP
For C75TLR 1994-1999 75HP
For C80TLR 1997 80HP
For C85TLR 1992-1995 85HP
For C90TLR 2000-2001 90HP
For P50TLR 1993 50HP
For P60TLH 1992-1999 60HP
For P75TLH 1996-1999 75HP
For Outboard 50-90 HP 92 93 94 95
For Mercury Marine:
TILT & TRIM All Models 135HP 150HP 175HP 200HP 225HP
Specifics:
Voltage: 12V
2-Wire Configuration
Ring Terminals
3 Bolt Mount
Rotation: Reversible Field Hsg OD: 64mm/2.520in
Overall Length: 119mm/4.685in
Shaft OD: 8mm/0.315in
Shaft Notes: 4mm Drive Tang
