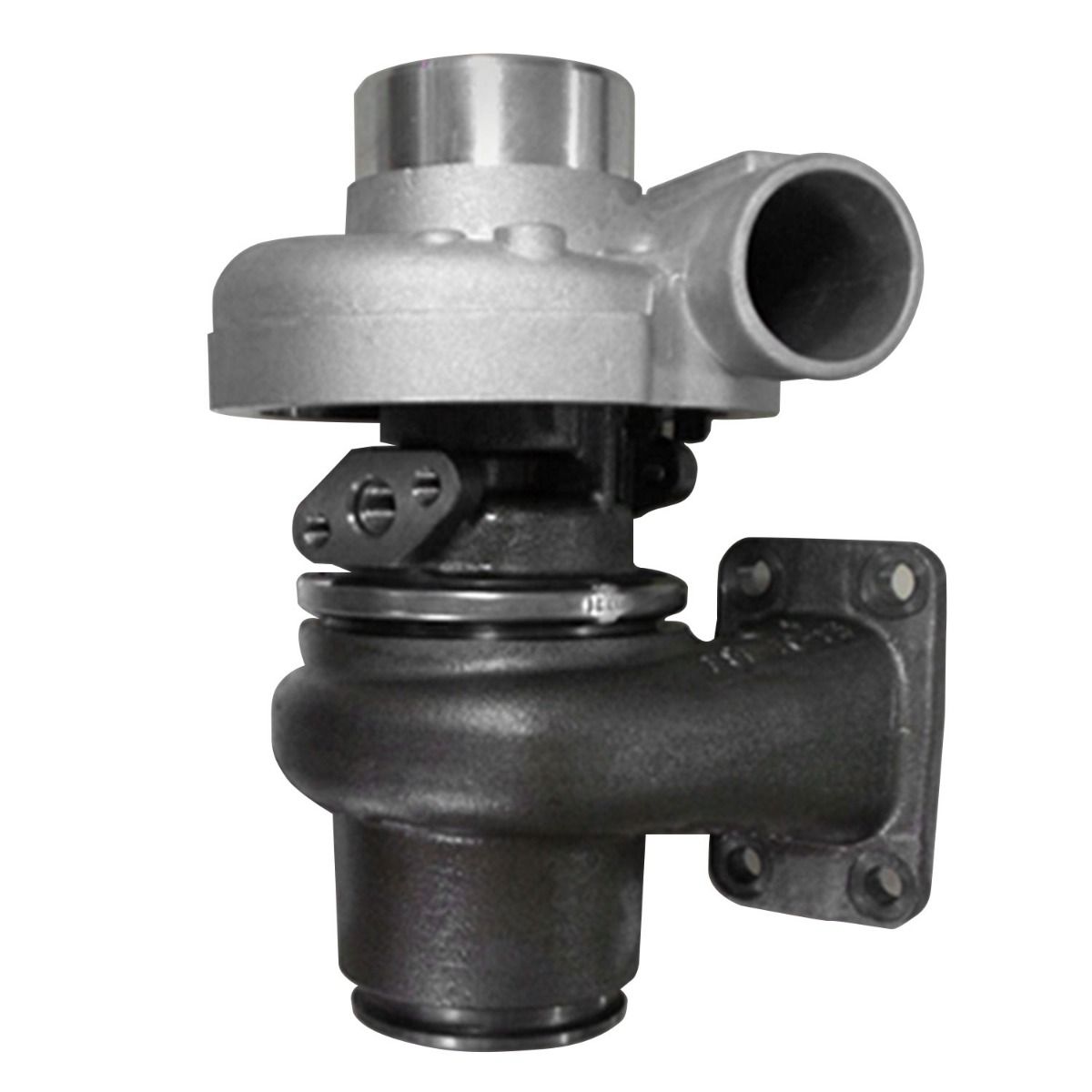

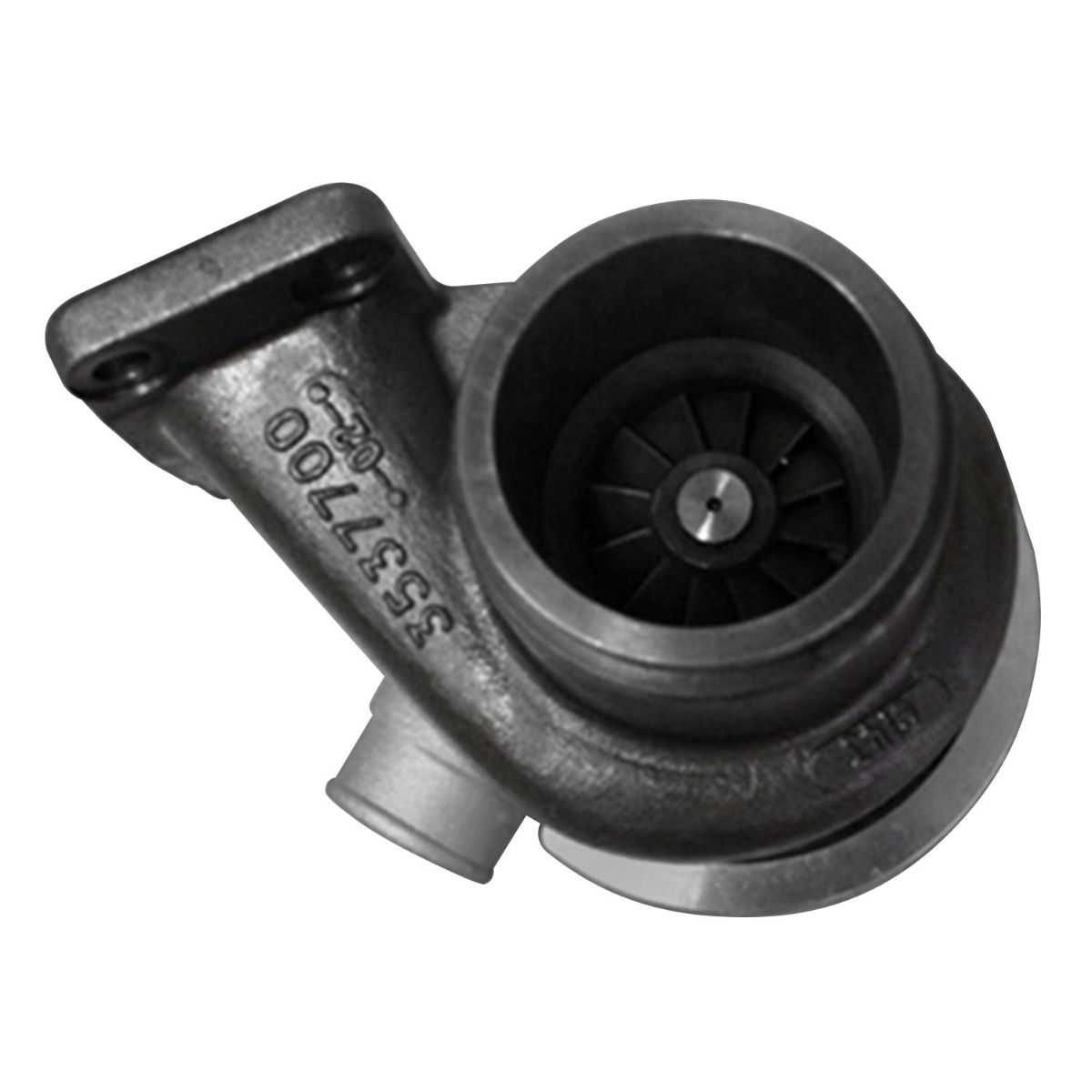

Turbo Charger 6732818052 for Komatsu
Turbo Charger 6732818052 for Komatsu
Buyer Protection
- Full Refund If you don't receive your order
- Full or Partial Refund , If the item is not as described Learn More >
Part Number: 3539803 6732818052 6732818102 3804963 6732-81-8052 6732-81-8102 3590022 3539846
Package Included: Turbo Charger x1
Various Industrial Manufacturer Part Number 3539846, 3590022 CHRA 4027483 (3580573)
Turbo Model HX30-Q6819A/B08JX33N, HX30
Displacement 3.9L, 3900 ccm
Engine Model 4BT-110, S4D102, S40102-4BT110
Bearing Housing 3539898 (4030801)
Turbine Wheel 3539805
Comp. Wheel 3592013
Back Plate 3530923 (1154351300)
Heat Shield Number 3519302 (3519304)(1152301340)
Repair Kit 3575205 (4027485)(1153030750)
Turbine Housing 3536890
Compressor Cover 3539806
Gasket (turbine inlet) 409039-0000
Gasket (oil outlet) 210060
Gasket (oil inlet) 210023
Gasket Kit 3545575 (1900100057)
Replaced by 3590022
Application:
for Komatsu Excavator PC120-6 4D102 4BT 4BT-110 S4D102
It Is a Replacement Part Not Original Part But It Can Work Good For You
